Remote Operating System Classification over IPv6

(Authors are in alphabetical order.)
David Fifield UC Berkeley
Alexandru Geana TU Eindhoven / Fox-IT, Delft
Luis MartinGarcia ETSIT, Polytechnic University of Madrid
Mathias Morbitzer Fox-IT, Delft
J. D. Tygar UC Berkeley

This talk is about the IPv6-based OS fingerprinting engine in Nmap, a widely used network security scanner.

# nmap -6 -O ipv6.google.com
Starting Nmap 6.49SVN ( https://nmap.org ) at 2015-09-28 11:36 MDT
Nmap scan report for ipv6.google.com (2607:f8b0:4009:804::1002)
Host is up (0.022s latency).
rDNS record for 2607:f8b0:4009:804::1002: ord08s10-in-x02.1e100.net
Not shown: 998 filtered ports
PORT    STATE SERVICE
80/tcp  open  http
443/tcp open  https
Device type: general purpose
Running: Linux 3.X
OS CPE: cpe:/o:linux:linux_kernel:3
OS details: Linux 3.12 - 3.18

OS detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 8.54 seconds

OS fingerprinting is relevant for network inventory, vulnerability scanning, and exploit tailoring.

History of OS fingerprinting in Nmap

1998–2007

1st-gen IPv4 fingerprinter (1,684 fingerprints)

2006–present

2nd-gen IPv4 fingerprinter (4,766 fingerprints)

2011–present

IPv6 fingerprinter (~300 training samples in ~100 classes)

Design goals, based on extensive experience with IPv4:

1. Low cost to maintain the training database.
2. Resilience in the face of network interference.

The OS fingerprinting process

1. Do a port scan to find open/closed ports.
2. Send up to 18 crafted OS probes (13 TCP, 4 ICMPv6, 1 UDP).
3. Convert response packets into feature vectors.
4. Run linear classifiers, one per OS class.
5. Output the best match if its “novelty” is sufficiently low.

If there is no good match, the system displays a raw fingerprint and asks the user to submit it.

We use LIBLINEAR in its L₂-regularized logistic regression mode.

Why OS fingerprinting works

Different OSes speak different “dialects” of TCP/IP.

Probe selection

We looked for “SHOULD”s and “MAY”s in IPv6 standards.

We built a test program with 154 candidate OS probes.

Volunteers tested all 154 probes against a “seed” set of OSes.

We selected 18 probes that offer good efficiency: 13 TCP, 4 ICMPv6, 1 UDP.

Features

Novelty

A major challenge is identifying when the classifier doesn’t have a good answer (e.g. a never-before-seen type of network printer).

Novelty is the distance of a feature vector from the mean of a class, where each dimension is scaled by the inverse of its variance. (One-sample classes have their variance set to a small constant.)

Submissions

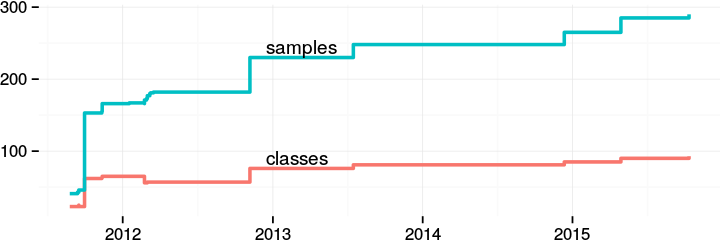

We rely on user submissions to grow the database.

But IPv6 adoption is still not as high as we would like :(

In the time it took to get 4,700 IPv4 submissions, we got only 97 IPv6 submissions.

Challenges

Low ratio of training samples to classes. 16% of training samples are the only member of their class; 10% are in a two-sample class.

20–30% of classes are unknown, embedded OSes (identified only by hardware model number).

Network-corrupted and missing features.

Lack of ground truth. Very few training samples compared to IPv4.

Evaluation

10-fold cross-validation on our training set of 290 samples has an accuracy of 69%.

If we allow near misses (e.g., one Linux 3.x class confused for another Linux 3.x class), accuracy rises to 80%.

Work in progress

New probes

• Inducing fragmentation
• IPv6 extension headers
• Multicast listeners

Feature imputation

• Fingerprints are often missing features (which may be a characteristic of the OS and may not)
• Tests with imputation increase cross-validation accuracy by 1–2%

Nmap

https://nmap.org/

OS fingerprinting documentation

https://nmap.org/book/osdetect.html

fifield@eecs.berkeley.edu

Happy scanning!
